21 Bioinstrumentation
Principles and Techniques
Pearls
• Monitoring and support systems provide valuable information and assistance in managing patient care, but the focus should always be on the patient and family as a first priority.
• Assess the patient’s clinical condition before troubleshooting instruments.
• There are many physical characteristics of children that influence the development, use, size, and accuracy of biomedical instruments.
• No single measurement will be as valuable as the evaluation of trends in measurements over time.
• Not all instruments are necessarily valuable or precise.
• ECG waveforms indicate myocardial electrical activity and not the effectiveness of myocardial mechanical function.
• Respiratory monitoring is an invaluable resource to detect cardiopulmonary insufficiency and allow intervention before the development of cardiopulmonary failure.
• The use of mechanical ventilation does not ensure that the child’s ventilation is effective. The child’s clinical condition is the ultimate indicator of the effectiveness of mechanical ventilation.
• Multimodal monitoring, incorporating several neurologic monitoring parameters, may yield valuable information about the patient’s overall clinical status.
Overview of pediatric bioinstrumentation
Not all instruments are necessarily valuable or precise. The value of each device is affected by the skill of the clinicians and biomedical engineers working with the equipment. Karselis87 maintains that the primary purpose of an instrument is to “extend the range and/or sensitivities of man’s faculties” and, as such, should do so “with speed, reproducibility, reliability, and cost effectiveness.”
Characteristics of Children that Affect Bioinstrumentation
Cardiovascular Structure and Function
Several features of the child’s cardiovascular system influence the use of biomedical devices:
• Children have small arteries and veins for cannulation. Multiple lumen catheters in smaller sizes may be difficult to keep patent, influencing the choice of catheter and the nursing care required.
• The resting heart rate of the infant and small child is higher than that of the adult. As a result, when tachycardia develops the heart rate may be extremely high, making it difficult to evaluate the cardiac rhythm. A flexible but sensitive cardiac monitor is required that will accurately document changes in the child’s heart rate or rhythm, and avoid introduction of errors from movement and other artifacts.
• The major compensatory mechanism for the child with cardiovascular dysfunction is tachycardia. The relatively small stroke volume of the young child is generally near the maximum that can be achieved by the child’s small ventricle, so although stroke volume can increase slightly during periods of stress, the major mechanism for increasing cardiac output is an increase in heart rate. If the heart rate falls below normal, cardiac output typically falls. Thus, the child’s cardiac output is much more dependent on heart rate than on stroke volume.
• Pulmonary artery wedge pressure may be elevated artificially by the child’s rapid heart rate.
• The child has a relatively low systolic, diastolic, and mean arterial blood pressure compared with the adult; these low pressures must be measured accurately by monitoring devices. Quantitatively small changes in blood pressure can indicate qualitatively significant changes in the child’s cardiovascular function.
• The technique used to determine cardiac output (CO) by thermodilution may be influenced by the child’s limited tolerance of excessive fluid administration. Thermodilution CO calculations are performed in the adult using several 5-10 cc injections that will likely exceed a child’s fluid requirements. Therefore the CO computer must be capable of calculating CO based on smaller injectate volumes with an acceptable potential error.
Pulmonary Anatomy and Physiology
• The upper airway of the child is smaller than that of the adult. Therefore, endotracheal and tracheostomy tubes used for children must be smaller. In the past, the tubes used in children were uncuffed. In recent years, evidence has accumulated that cuffed tubes may be as safe as uncuffed tubes and use of cuffed tubes in the operating suite allows more accurate selection of tube size.92
• The small tidal volumes, rapid respiratory rates, and short inspiratory times of children require mechanical ventilators that are able to deliver small tidal volumes accurately in short inspiratory times and at low pressures.
• The major compensatory mechanism for the child with respiratory distress is tachypnea. Respiratory monitoring equipment must be capable of accurately measuring rapid respiratory rates, even when tidal volume is low and chest movement is minimal.
• The infant’s small airway closing pressure may be greater than atmospheric pressure, so there may be an increased tendency for alveolar collapse unless continuous positive airway pressure (CPAP) or positive end-expiratory pressure (PEEP) can be provided by pediatric respiratory assist devices.
• The infant’s chest wall is very compliant and provides little resistance to expansion during positive pressure ventilation, so visible chest rise should be observed during positive pressure ventilation. However, inadvertent hyperventilation and barotrauma may occur during hand or mechanical ventilation if excessive volume or pressure is provided.
• Although effective inspiratory inflation pressures are the same in normal patients of all ages, the force required to generate inspiratory pressure decreases with decreasing patient age because the lungs are small. Therefore, unless the inspiratory pressure is monitored closely, pneumothorax may be produced during hand ventilation or ventilation with high inspiratory pressure.
• Respiratory work normally accounts for 2% to 6% of the child’s total oxygen consumption. When the infant develops respiratory distress, this requirement may be as high as 25% to 30% of the total oxygen consumption.
• A rapid respiratory rate produces increased heat and water loss through the respiratory system. Therefore all respiratory assist devices must heat and humidify inspired air.
General Problems During Monitoring
• Specialized knowledge is required. The nurse must understand the principles and components of each piece of equipment used to understand its usefulness and hazards. If the nurse is unfamiliar with any equipment, the nurse must immediately obtain instructions in use and troubleshooting of the device.
Equipment is continuously being improved and upgraded and, consequently, this impacts interactive software and electronic medical record systems as well. The continuous improvements provide a challenge for ensuring that all staff are competent in the use of the current models of devices.
• Many alarm systems are in use simultaneously. The number of monitoring devices in use and subsequently the number of audible alarms sounding in the critical care unit are increasing dramatically. The sheer numbers of alarms may result in “alarm fatigue,”65 in which clinicians may disable, silence, or ignore alarms when the number, variety, and sounds of the alarms become overwhelming. In addition, alarms may be turned off or malfunction without the knowledge of the bedside nurse. This may allow a problem to progress to a critical state before detection.
If an alarm fails, the nurse is responsible for the consequences that may follow. All alarm settings and functions must be checked at least at the beginning and end of every shift and whenever vital signs are evaluated.
• Equipment introduces risk of infection. Contamination is more likely when invasive equipment is used, but it can also occur with noninvasive equipment.
Instrument Theory and Safety
Most electrical or mechanical monitoring systems include a sensor, a transducer, an amplifier, meters and alarms (Fig. 21-1). The nurse must interact with the patient and monitor at the point at which the device senses the physiologic signal and converts it to an electrical signal. The nurse also can adjust the amplifier and meter with tools such as the “gain” on an ECG monitor. The monitor alarm systems must be adjusted manually to fit the patient’s needs.
Definition of Terms
Several terms are used to describe the common properties of electrical energy. The application of these terms to equipment function may be clarified by using the biologic correlate of an electrical system—the cardiovascular (hydraulic) system.87
Current
Electrical current is the flow of electrons past a given point147; electricity is always in motion. Current reflects the number of electrons (negatively charged ions) flowing through a conducting substance per unit of time.
Voltage
| A B | |
| 10 electrons | 0 electrons |
| (−) charge | (+) charge |
| Electric current will flow from A to B. | |
Resistance
The relationship among these three terms—current (I), voltage (E), and resistance (R)—is described in the equation that follows and is also illustrated in Fig. 21-2.87
Power
Electrical power is the amount of work performed per unit of time; it is measured in watts. The rate at which the current flows (amperes [amps]) and the strength or power of flow (voltage) equals the wattage.147 The total amount of power in a circuit at any time is expressed in watts. When current flows through a conductor, a certain amount of energy is dissipated into the environment as heat or light (e.g., in a light bulb). The rate of energy dissipation is determined by resistance (R) and current (I). The power (P) generated can then be calculated.87
Relationship of Power, Current, and Resistance
Application of Terms
Electrical theory explains the properties of electrical energy or power, incorporating several important principles87:
• Flow occurs because of electrical voltage gradients (high to low).
• There must be a current source to sustain power (voltage).
• There must be a closed electrical circuit (or loop) for current flow to be possible. For example, a closed loop must be present between a sensing device and a monitor, or between a defibrillator and a patient.
The cardiovascular system functions in a manner similar to that described by the electrical principles in the preceding list. Comprehension of cardiovascular physiology requires knowledge of the properties flow (F), pressure (P), and resistance (R), and of their relationship (Fig. 21-3).
There are several important similarities between electrical theory and the cardiovascular system.
• There must be a voltage (or pressure) gradient between one point in the system and another for flow to occur. The direction of flow is from an area of high electron concentration to an area of low electron concentration or from an area of high pressure to one of lower pressure.
• There must be an electron pump or current source to sustain power or voltage. In the cardiovascular system the pump is the heart.
• The system must be a closed circuit or loop if the flow is to be sustained (Fig. 21-4).
Electrical Hazards in the Pediatric Critical Care Unit
In healthcare facilities, it is important to prevent establishment of conductive paths from patients to grounded objects.127 Conductive paths may be established though instrumentation, electrically conductive surfaces, or inadvertently. For example, damaged electrical cords can lead to possible shock or electrocution. A flexible electrical cord may be damaged by door or window edges, staples and fasteners, rolling equipment, or aging.
Hospital staff and patients can be exposed to electrical hazards that create risk of electric shock, electrocution, fires, and explosions.176 Electrical hazards are more likely when there is a lack of routine maintenance or surveillance of electrical equipment, misuse of the equipment, or a lack of understanding of the equipment and/or its controls. Oxygen-enriched atmospheres and water may also contribute to hazardous conditions.
Electric shock can produce effects that range from slight tingling to immediate cardiac arrest depending on the amount of current, the current’s path through the body, the duration of contact with the current, and the frequency of the current. The risk of electrical hazard is increased as the number of instruments increases. Controlling or preventing hazards requires raising the resistance of the conductive circuit or insulating surfaces that could become energized or a combination of both approaches.127
The Electrically Sensitive Patient
Some patients are vulnerable to electrical injuries by virtue of the instrumentation used to monitor them. Patients with externalized direct conductive paths to the heart may be electrocuted at very low current levels.127 They are at risk for macroshock or microshock phenomenon.
Macroshock
• Skin resistance in a dry state provides up to 1 million ohms of resistance. This alone would protect a person from an otherwise fatal shock when contact is made with a 120-volt line.
• Diffusion of current, which normally occurs as current passes through body tissue, reduces current density. Therefore the myocardium receives only a portion of the total current delivered to the body.
Microshock
A microshock is a small amount of current that may produce significant injury because it has a direct path of entry to the myocardium, such as through a pacemaker wire or intracardiac catheter. A microshock with as little current as 200 mA may produce ventricular fibrillation if it is directed through pacemaker wires (Table 21-1). In comparison, the threshold for ventricular fibrillation applied to the skin is documented at 500 mA or 2500 times the current required for microshock to occur. Therefore a patient with intracardiac catheters is especially vulnerable to microshock because the small amount of current required to produce fibrillation is imperceptible to the care provider.
| Current | Effect with Skin Contact | Comments |
| 200 microamps (0.2 mA) |
No perception | If current contacts intracardiac catheters, it may cause ventricular fibrillation. |
| 1-10 mA (0.001-0.01 A) |
Tingling sensations | Tingling when touching an electrical device indicates an impending hazard. |
| Unplug the instrument and have it checked immediately. | ||
| 100-500 mA (0.1-0.5 A) |
“Can’t let go” phenomenon | Do not touch victim or instrument. |
| Unplug device if possible. | ||
| Push the victim out of contact with the device using a broom or folded blanket or throw your body against the victim, moving him or her away from the device. | ||
| 500-1500 mA (0.5-1.5 A) |
Ventricular fibrillation | See comment for 100-500 mA. Note that these victims must receive immediate cardiopulmonary resuscitation. |
Current Leak
In a critical care unit setting, current leak from electrical equipment creates a major risk of macroshock or microshock. Current leak does not necessarily result from equipment malfunction, but it occurs naturally when current flows between two electrical conductors that are insulated from one another (e.g., between the internal electronics of an ECG monitor and its chassis). The current will seek a path of least resistance; if a patient is in contact with one electrical device, the current will be conducted through the patient (Fig. 21-5). Therefore, patients should be protected from contact with line-powered equipment.
Grounding
Grounding is a protective mechanism built into electrical circuits. A ground is simply a means of conducting electrical current to the earth or some other object connected to the earth. Earth has zero voltage, so the voltage drop to earth provides an inherent safety feature for grounded circuits. Current always travels along the path of least resistance, and if a connection to the ground is available it provides the path of least resistance (Fig. 21-6).
In contrast, an isolated system commonly is created in critical care units and operating rooms. In an isolated system, grounding is provided by a special transformer, leaving the equipment “isolated” so that the current flows only from one isolated line to another (Fig. 21-7). In a perfectly isolated system, one could touch a water faucet (ground) with one hand and touch either of the two isolated lines without receiving a shock. This isolated system offers a great advantage over the power systems but is more difficult to construct.87
Electrical Safety
Standards for electrical safety in each hospital are based on the principles of electrical theory and current electrical code.127 Best practices include inspection and labeling of biomedical equipment when it arrives at the hospital plus routinely scheduled equipment inspections and maintenance. Daily instrument surveillance by care providers will prevent many equipment problems. Nurses should always be cognizant of potential safety hazards and they are responsible for preventative safety efforts.
1. Be alert to potential electrical hazards and inspect equipment and cords throughout the course of providing care. Use only equipment in good working condition that is labeled appropriately and inspected on schedule. All users require training before operating new or unfamiliar equipment.
2. Note inspection dates posted on equipment by the hospital biomedical engineers and notify the engineers of expired inspection dates. If clinical equipment is found to be damaged, it should be deenergized, tagged, and removed from the area when portable. The Safe Medical Devices Act requires reporting of medical devices believed to have caused or contributed to serious injury or death.152
3. Always use three-prong (grounded) plugs. Electricity is delivered through one of the wires in an electric cord—the live or hot wire. The other two wires are the neutral and ground wires. The ground wire is the longer round prong on the electric plug.
4. Avoid using extension cords because they provide greater length of conduction material and the possibility of a current leak.39 Extension cords are often placed on the floor, where they may be crushed by rolling beds or machines.
5. Make sure that any equipment leads connected to the patient are insulated and isolated from possible contact with stray current or a “hot” wire.
6. Do not allow any conductive liquids to come into contact with intracardiac wires (e.g., pacemaker wires) or catheters, because current leak may be conducted directly to cardiac tissue or through the heart and catheter to the grounded monitor.
7. Avoid 60-cycle (60-Hertz) interference. When two conductive surfaces (e.g., the human body and a monitor) are close to each other, they hold and transmit alternating current (AC) between them and can transmit current to other conductive surfaces. This is termed capacitance; the property of “holding” electrical energy. This capacitance between the patient and the monitor system, which is typically surrounded by other conductors (e.g., apnea monitors or IV pumps), produces a “fuzzy” baseline tracing on the ECG and can be minimized or dispersed by several methods:
8. Recognize special precautions for patients who have invasive intracardiac catheters or pacing wires. Be certain that these catheters and wires are not in direct contact with electrical equipment (e.g., ECG leads) to avoid microshock.
9. Pay particular attention to patients who are in high humidity environments (e.g., receiving humidified air via a face tent) if invasive catheters (e.g., central venous catheters) are in place. Water is an electrolyte solution that will conduct current.
10. Do not place any instruments on metal carts or shelves or near water. Water and metal are highly conductive materials that may conduct stray current.

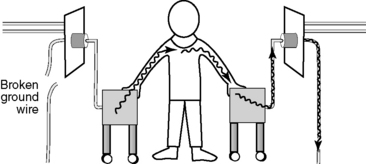

11. Try to avoid touching both the patient and an electrical device simultaneously because you may provide a path for conduction of stray current from the device to the patient. The nurse should never touch two electrical devices simultaneously; if there is a current leak, the nurse becomes the path from the broken instrument to the ground (Fig. 21-8).
12. Minimize the effect of static electricity. Static electricity built up on the surface of an object may discharge to a person, generally resulting in a small shock. However, static electricity shocks can be much more serious in the presence of nearby flammable or combustible substances, creating the potential for explosion.
13. Always use grounded equipment. Stray current from defective equipment will follow the path of least resistance leading to ground. If your body is between a live wire and the ground, electricity will travel through you. Electric currents flow between parts of the body or through the body to a ground or the earth by whatever path possible.
14. Hospital policies regarding the use of electrical devices should be clear and accessible. Generally, biomedical departments must approve, inspect, and label all electrical items brought into the hospital (including any items that patients and families bring from home).
All electrical equipment used in the hospital must be approved for safety by the Underwriters Laboratory (UL) or another OSHA-approved body. These approvals and inspections ensure that powered equipment meets hospital standards, is compatible with existing equipment, and that service contracts meet the needs of the hospital.131
15. Safety signs or symbols, such as accident prevention placards, are used where necessary to warn employees about potential electrical hazards. Barricades may be necessary to prevent or limit employee or visitor access to hazardous areas.
