Case presentation

A 73-year-old man with a long and complex coronary history presents with increasing angina pectoris over several months. His saga with coronary artery disease began 18 years earlier when he underwent single-vessel bypass graft surgery consisting of a left internal mammary artery to the left anterior descending artery. He developed recurrent angina 8 years ago and was found to have a severe stenosis of the left anterior descending artery distal to the left internal mammary artery anastomosis; the other arteries were without significant narrowing. This lesion was treated with a bare-metal stent with a good clinical result. Over the ensuing years he developed progressive coronary atherosclerotic narrowing of the circumflex and right coronary arteries associated with anginal chest pain, and these were treated with bare-metal stents with a satisfactory clinical result. His last catheterization and intervention occurred 3 years earlier, and he did well until several months ago when he again developed severe angina with minimal exertion. He was referred for cardiac catheterization. In addition to coronary artery disease, he also has a history of diabetes, hypertension, and dyslipidemia.

Cardiac catheterization

An elective diagnostic coronary angiogram found no significant obstructive disease in the right coronary artery. The left internal mammary artery graft was widely patent but there was severe narrowing within the stent placed 8 years earlier (Figure 33-1 and Video 33-1). In addition, there was obstructive narrowing of the left circumflex artery proximal to an old stent (Figure 33-2) and chronic occlusion of the proximal left anterior descending artery. Based on these findings, the operator planned to treat the circumflex lesion and then the in-stent restenosis in the native left anterior descending artery, to be accessed via the left internal mammary artery graft using bivalirudin as the procedural anticoagulant. The circumflex lesion responded well to balloon dilatation followed by placement of a 3.5 mm diameter by 23 mm long everolimus-eluting stent (Figure 33-3).

FIGURE 33-1 Selective angiography of the left internal mammary artery graft to the left anterior descending artery shows severe stenosis in the left anterior descending artery within an old bare-metal stent (arrow).

FIGURE 33-2 This left anterior oblique projection with caudal angulation of the left coronary artery shows occlusion of the left anterior descending artery and severe stenosis in the proximal left circumflex artery (arrow).

FIGURE 33-3 This angiogram was obtained after stenting the circumflex artery (right anterior oblique with caudal angulation).

Once satisfied with the circumflex artery, the operator placed a 6 French left internal mammary guide catheter into the left subclavian, but noted contrast staining from the diagnostic angiogram still present in the proximal portion of the left internal mammary artery (Figure 33-4 and Video 33-2). A dissection of the proximal left internal mammary artery graft was suspected, and the guide catheter was cautiously engaged to allow further delineation of the dissection (Video 33-3). At this point, the subclavian artery did not appear to be involved, and the operator advanced a 0.014 inch floppy-tipped guidewire through the mammary artery and into the left anterior descending artery. With additional contrast injections, however, staining of the subclavian artery was noted, confirming that the dissection likely involved the ostium of the internal mammary artery, extending into the subclavian artery (Figure 33-5 and Video 33-4).

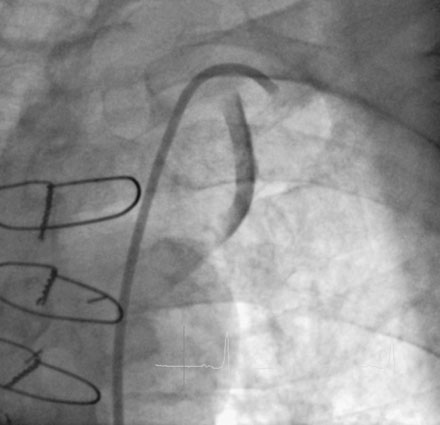

FIGURE 33-4 Before the planned intervention on the left anterior descending artery via the left internal mammary graft was begun, contrast staining was noted in the proximal segment of the left internal mammary artery graft.

FIGURE 33-5 A dissection was also apparent in the subclavian artery.

Despite the extensive dissection, the patient remained clinically stable and without chest pain. The operator planned to stent the dissection within the left internal mammary graft, but thought it wise to first treat the lesion in the left anterior descending artery as initially planned and thus deployed a 2.5 mm diameter by 28 mm long everolimus-eluting stent at the site.

Numerous bare-metal stents were deployed within the left internal mammary artery graft, ultimately requiring a total length of 118 mm to cover the entire dissected area (Figure 33-6 and Videos 33-4, 33-5). Once the operator was satisfied with the repair of the left internal mammary artery graft, attention was turned to the subclavian artery. Angiography confirmed a dissection flap, but this remained stable throughout the procedure, did not compromise the origin of the vertebral artery (Figures 33-7, 33-8 and Videos 33-6, 33-7), and did not result in a pressure gradient across the dissected segment. Because the entry site of the intimal flap was opposite the direction of blood flow, it was decided to treat this dissection conservatively and the procedure was halted.

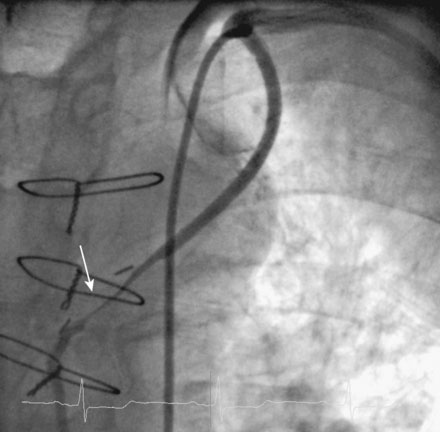

FIGURE 33-6 The dissection caused luminal compromise of the left internal mammary graft (arrow), likely from an intramural hematoma.

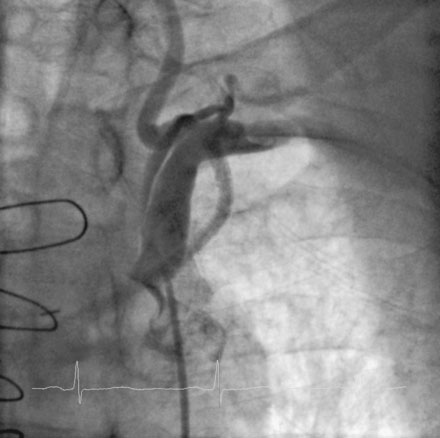

FIGURE 33-7 The extent of the intimal flap in the subclavian artery is shown here.

FIGURE 33-8 Another view of the intimal flap in the subclavian artery showed no involvement of the vertebral artery (arrow).

Postprocedural course

He was observed in the coronary care unit overnight and remained free of chest pain. Blood pressure in both arms remained equal overnight. He underwent a CT angiogram the next day that showed no evidence of a dissection flap at the site, suggesting that the intimal flap had sealed without extension or luminal compromise. He was discharged, and remained free of angina 2 months and one year later.

Discussion

Selective angiography of left internal mammary artery grafts is routinely performed during diagnostic catheterization in patients who had prior surgery using this conduit. In most cases, the procedure is simple and is executed without complication. Due to the fact that the left internal mammary arises with an acute angle from the subclavian artery, a specially-shaped IMA catheter, characterized by a sharply-angled tip, is often used to successfully engage this vessel. In the case presented here, the sharply-angled tip of the catheter likely created a small intimal tear that may have been extended down the mammary artery with the injection of contrast. The injury was initially confined to the proximal segment of the mammary artery graft, and was not appreciated until the operator completed the circumflex intervention and passed a guide catheter to the subclavian to begin the intervention on the LAD. Subsequent manipulations, necessary to repair the dissection, initially worsened the extent of the dissection and, in fact, the dissection was propagated to the surrounding segment of the subclavian artery.

Luminal obstruction of the internal mammary artery in this case was due to both an extensive dissection flap and an intramural hematoma, and both of these aspects need to be addressed during repair of this problem. It is not enough to simply stent the entry site of the dissection; the intramural hematoma significantly compressed the lumen and this also required stenting, leading to a very long sequence of stents.

The subclavian dissection added further to the operator’s quandary. This complication is very rare.¹ Although a stent could have been placed at the site of the subclavian tear,² the operator was concerned about the dissection’s close proximity to both the vertebral and left internal mammary arteries and feared jeopardizing or “jailing” these important branches. The decision to treat the subclavian dissection conservatively was based on two important observations. First, there was no pressure gradient measurable across the subclavian dissection, indicating that the dissection did not create significant luminal obstruction. Second, the direction of blood flow was opposite the direction of the entry flap, thereby making it unlikely that the dissection would extend. This strategy proved successful, based on the imaging study performed the next day demonstrating no evidence of the subclavian dissection.
