Applied anatomy of the lower leg, ankle and foot


Definitions

The functional terminology in the foot is very misleading, because the same terms are often used for very different things. The following definitions and explanations are used here:

• Plantiflexion–dorsiflexion indicate movement at the ankle. Plantiflexion is movement downwards towards the ground, and dorsiflexion upwards towards the tibia. There is also a plantiflexion–dorsiflexion movement at the midtarsal joint.

• Varus–valgus: these movements occur at the subtalar joint. In valgus, the calcaneus is rotated outwards on the talus; in varus, the calcaneus is rotated inwards on the talus.

• Abduction–adduction: these take place at the midtarsal joints. Abduction moves the forefoot laterally and adduction moves the forefoot medially on the midfoot.

• Pronation–supination are also movements at the midtarsal joints. In pronation, the forefoot is rotated big toe downwards and little toe upwards. In supination, the reverse happens: the big toe rotates upwards and the little toe downwards. Sometimes the terms internal rotation and external rotation are used to indicate supination or pronation.

• Inversion–eversion: these are combinations of three movements. In inversion, the varus movement at the subtalar joint is combined with an adduction and supination movement at the midtarsal joint. During eversion, a valgus movement at the subtalar joint is combined with an abduction and pronation movement at the midtarsal joint.

The leg

The bones (tibia and fibula) together with the interosseous membrane and fasciae divide the leg into three separate compartments: anterolateral, lateral and posterior. They contain the so-called extrinsic foot muscles. Each compartment has its own blood supply and innervation.

Anterolateral compartment

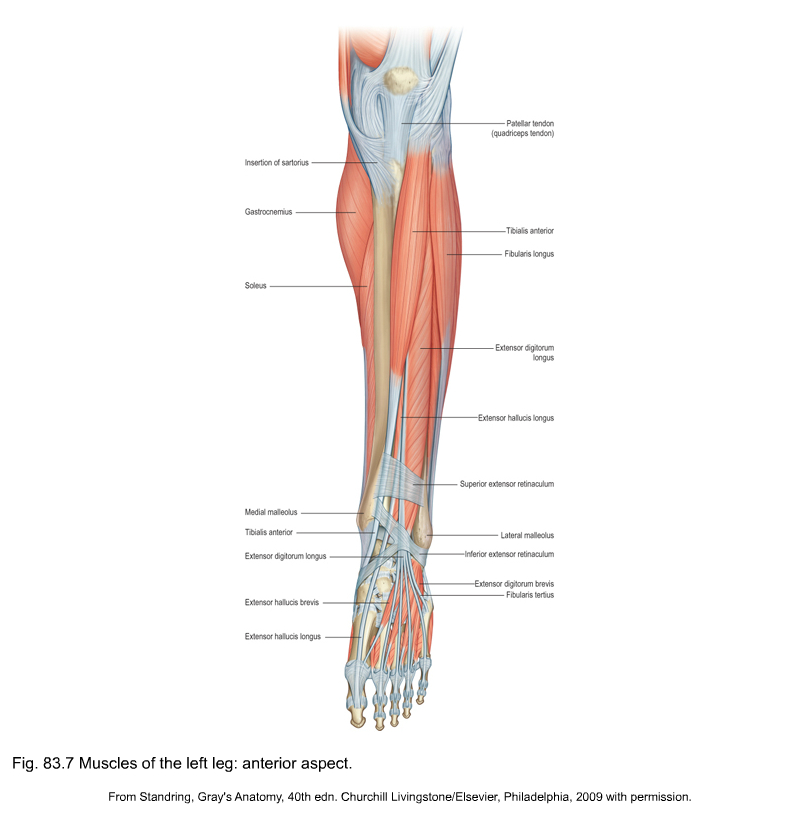

The muscles of the anterolateral compartment are the tibialis anterior, the extensor hallucis and the extensor digitorum, which are all dorsiflexors. The tibialis anterior, however, is also an invertor. The muscles lie in a strong osteofibrous envelope, consisting of tibia, fibula, interosseous membrane and superficial fascia. The anterior tibial artery (Fig. 1) is located at the anterior surface of the interosseous membrane. It supplies the muscles of the anterior compartment and continues at the dorsum of the foot as the dorsalis pedis artery. The nerve supply of the anterior compartment is from the deep peroneal nerve, a branch of the common peroneal nerve.


Fig 1 Transverse sections halfway down the leg (a) and at the malleoli (b). 1, tibialis anterior; 2, extensor hallucis longus; 3, extensor digitorum longus; 4, peroneus brevis; 5, peroneus longus; 6, flexor hallucis longus; 7, flexor digitorum longus; 8, tibialis posterior; 9, soleus; 10, plantaris; 11, gastrocnemii; 12, anterior tibial nerve; 13, anterior tibial vessels; 14, posterior tibial neuromuscular bundle.

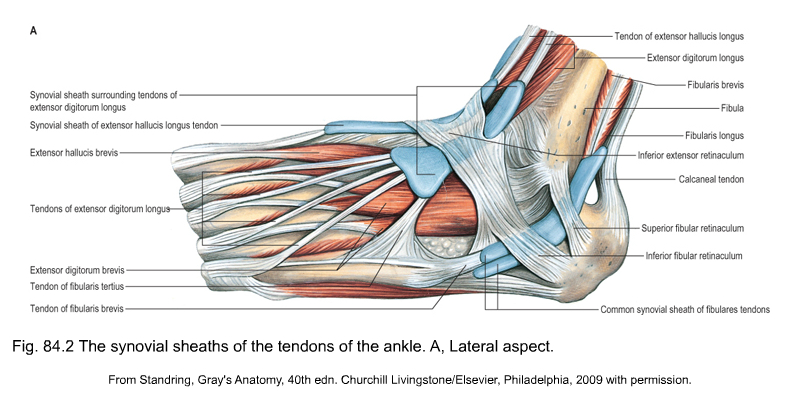

Lateral compartment

The lateral compartment contains the peronei longus and brevis muscles. These are strong evertors and weak plantiflexors. Blood supply is from the peroneal artery, a branch of the posterior tibial artery and nerve supply from the superficial peroneal nerve.

Posterior compartment

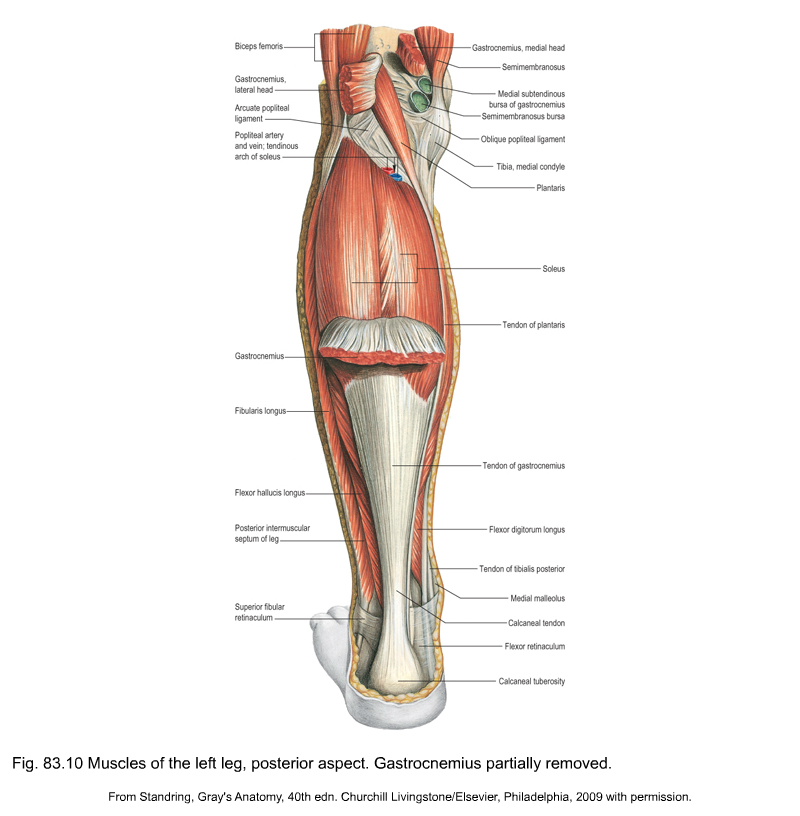

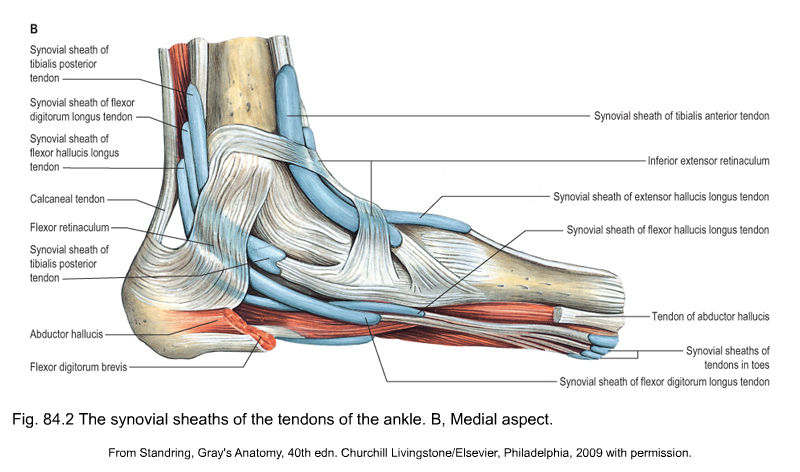

The posterior compartment has a deep and a superficial part. The deep part consists of the tibialis posterior, flexor hallucis longus and flexor digitorum longus muscles. The tendons run behind the medial malleolus to the inner aspect of the sole and to the toes. Hence they are invertors of the foot and flexors of the toes. They also act as weak plantiflexors of the foot. The muscles of the superficial part are both heads of the gastrocnemius, the soleus and the plantaris. The soleus and both gastrocnemii form the triceps surae which inserts – via the Achilles tendon – at the upper posterior aspect of the calcaneus. The plantaris muscle usually has a separate insertion, just medial to the Achilles tendon. This group of muscles acts as a very strong plantiflexor. The artery of the posterior compartment is the posterior tibial. The tibial nerve provides the nerve supply.

The ankle and foot

The 26 bones of the foot create an architectural vault, supported by three arches and resting on the ground at three points, which lie at the corners of an equilateral triangle (Fig. 2). Ligaments bind the bones to provide the static stability of the foot. The dynamic stability of the vault is achieved by the intrinsic and extrinsic muscles.


Fig 2 The three arches of the foot.

Three functional segments can be distinguished: forefoot, midfoot and ankle (Fig. 3). Each has its particular functions and specific disorders (see Standring, Fig. 84.8A). The posterior segment (ankle) is the connection between foot and leg. It lies directly under the tibia and fibula and is connected to them by strong ligaments. This segment contains the talus (in the mortice between the fibula and the tibia) and the calcaneus.

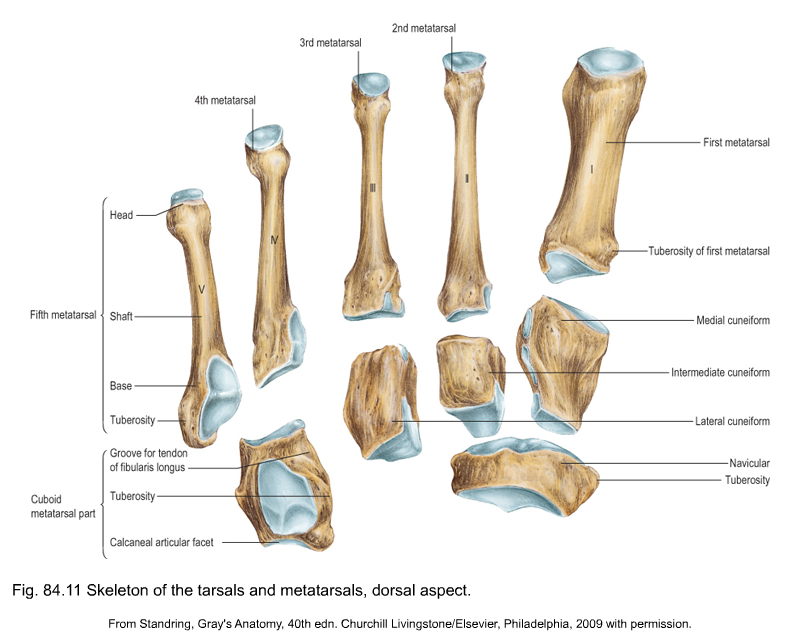

Fig 3 The three segments of the foot: 1, phalanges; 2, metatarsals; 3–5, medial, intermediate and lateral cuneiforms; 6, navicular; 7, cuboid; 8, talus; 9, calcaneus.

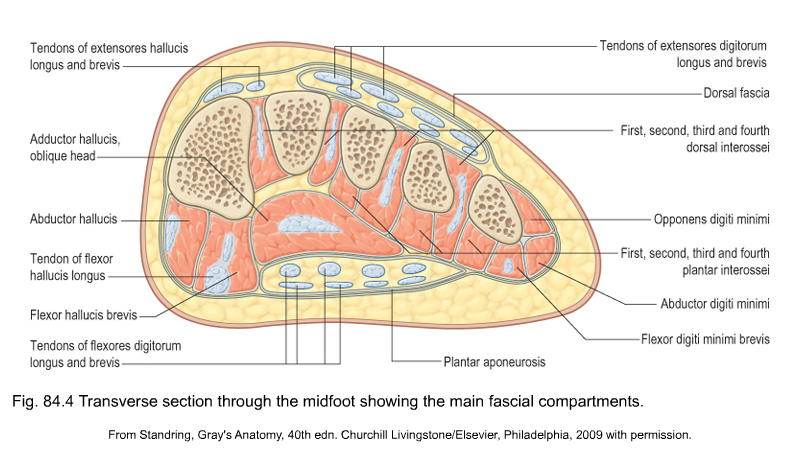

The middle segment (midfoot) contains the five tarsal bones and is the keystone in the plantar vault. Excessive stresses falling on the vault therefore influence the midfoot in particular.

The anterior segment (five metatarsals and 14 phalangeal bones) takes the whole body weight during the ‘heel-off’ phase in walking or running. This specific function of the forefoot underlies pressure disorders at the plantar surface of the metatarsals and toes.

The posterior segment

The talus is the mechanical keystone at the ankle (Fig. 4). It distributes the body weight backwards towards the heel and forwards towards the midfoot (medial arch of the plantar vault). The talus has no muscular insertions but is entirely covered by articular surfaces and ligamentous reinforcements. It is also crossed by the tendons of the extrinsic muscles of the foot.


Fig 4 The talus distributes the body weight to the heel and midfoot.

Ankle joint

The superior surface and the two sides of the body of the talus are gripped between fibular and tibial malleoli, forming the ankle mortice (see Standring, Fig. 84.16). Stability of this tibiofibular mortice is provided by the anterior and posterior tibiofibular ligaments and the interosseous ligament. Because the body of the talus is wedge shaped, with the wider portion anterior, no varus–valgus movement will be possible with an ankle held in dorsiflexion, unless the malleoli or the tibiofibular ligaments are damaged (Fig. 5).


Fig 5 The body of the talus is wedge shaped with a wider anterior portion.

The normal movement of the ankle joint is plantiflexion–dorsiflexion, through an axis that passes transversely through the body of the talus. The lateral end of this axis goes through the lateral malleolus (Fig. 6). Hence, a normal plantiflexion–dorsiflexion movement does not influence the tightness of the calcaneofibular ligament. At the medial end, however, the axis is placed under the tip of the medial malleolus and thus under the malleolar point of attachment of the medial ligaments. Here, the posterior fibres of the deltoid ligament will become taut on dorsiflexion and the anterior fibres on plantiflexion (Fig. 7).


Fig 6 Axis of plantiflexion–dorsiflexion (X–X′): 1, lateral malleolus; 2, talus; 3, calcaneus.


Fig 7 The anterior fibres of the deltoid ligament become taut during plantiflexion (a) and the posterior fibres during dorsiflexion (b).

Subtalar joint

The subtalar or talocalcaneal joint consists of two separate parts, divided by the tarsal canal (Fig. 8), which is funnel shaped with the wide portion at its lateral end. The lateral end of the canal is easily palpated in front of the fibular malleolus between talus and calcaneus, especially when the foot is inverted. The canal runs posteromedially, to have its medial opening just behind and above the sustentaculum tali. In the canal a strong ligament, the interosseous talocalcaneal ligament, binds the two bones (see Standring, Fig. 84.15).


Fig 8 View of the plantar calcaneonavicular ligament from above, with the talus removed: 1, calcaneus; 2, posterior part of subtalar joint; 3, sustentaculum tali; 4, anterior part of subtalar joint; 5, tarsal canal; 6, interosseous talocalcaneal ligament; 7, plantar calcaneonavicular ligament; 8, dorsal calcaneocuboid ligament; 9, cuboid; 10, navicular (transsection).

The main movement of the subtalar joint is a varus–valgus movement around an axis through the talus. This axis has a 45° angle to the horizontal and a 15° angle medial to a line drawn through the second metatarsal.

Ligaments of ankle and subtalar joints (see Standring, Fig. 84.13)

Lateral ligaments

The anterior talofibular ligament is a triangular structure, its base attached to the anterior margin of the fibular malleolus and the smaller insertion at the neck of the talus (Fig. 9), just behind the mouth of the sinus tarsi.


Fig 9 Lateral and posterior ligaments of the ankle: (a) lateral view; (b) posterior view: 1, posterior talofibular ligament; 2, calcaneofibular ligament; 3, distal tibiofibular ligament; 4, anterior talofibular ligament; 5, posterior tibiotalar ligament; 6, tarsal canal.

The calcaneofibular ligament is a strong round band running obliquely downwards and backwards from the apex of the fibular malleolus to the lateral surface of the calcaneus.

The posterior talofibular ligament arises from the medial surface of the lateral malleolus and runs horizontally and medially to insert at the posterolateral tubercle of the talus.
